Loading React Components Dynamically on Demand

Broken Post?Let me know

UPDATE - October 28, 2018

Refer to the updated post, Loading React Components Dynamically on Demand using React.lazy if you are using v16.6.0+.


I was looking for implementations for a Factory Pattern in JavaScript to get rid of a switch statement when displaying React components.

Then I ran into a dynamic import().

I will show you 3 ways to use import() to dynamically load React Components.

  1. Loading React Components Dynamically - Demo - Source Code
  2. Handling Different Data Types - Demo - Source Code
  3. Loading Components on Demand - Demo - Source Code

Let's dive in 🏊~

Case 1 - Loading React Components Dynamically

Problem

Suppose that you want to display differently for each event in an events array.

const events = [
"PushEvent",
"PushEvent",
"PushEvent",
"ReleaseEvent",
"StatusEvent",
"BadEvent"
];
ReactDOM.render(<IfApp events={events} />, document.getElementById("root"));
view raw IfAppIndex.js hosted with ❤ by GitHub

Within IfApp.render(), one would use a if/switch statement to check what type of event it is and create a component as shown below.

import React, { Component } from "react";
import shortid from "shortid";
import PushEvent from './components/PushEvent';
import ReleaseEvent from './components/ReleaseEvent';
import StatusEvent from './components/StatusEvent';
import "./App.css";
class IfApp extends Component {
render() {
const {events} = this.props;
const eventElement = events.map(event => {
switch (event) {
case "PushEvent": return <PushEvent key={shortid.generate()} />;
case "ReleaseEvent": return <ReleaseEvent key={shortid.generate()} />;
case "StatusEvent": return <StatusEvent key={shortid.generate()} />;
default: return <div key={shortid.generate()}></div>;
}
});
return (
<div>
{eventElement}
</div>
);
}
}
export default IfApp;
view raw IfApp.js hosted with ❤ by GitHub

There are two issues with this approach.

  1. it quickly becomes a maintenance nightmare as new event gets created.
  2. We are importing components even if we don't need it

Alternative Approach

We can mitigate the problem if

  1. We can import dynamically only the components we need, and
  2. also make it easier to maintain by getting rid of switch statement.

I will use import() statement to dynamically load event component (Please refer to this excellent article by Serg Hospodarets for  import() ).

Here is the demo code structure.

React Dynamic Component Code Structure Code 2017 12 03 17 40 48

Here is the method to add a component by type name ("PushEvent", "ReleaseEvent", and "StatusEvent").

addComponent = async type => {
console.log(`Loading ${type} component...`);
import(`./components/${type}.js`)
.then(component =>
this.setState({
components: this.state.components.concat(component.default)
})
)
.catch(error => {
console.error(`"${type}" not yet supported`);
});
};

Given a type name, addComponent() imports a component file and adds it to this.state.components.

And also, if an unknown type is passed, it displays an error message in console.

And the method is called for each type within componentDidMount().

async componentDidMount() {
const { events } = this.props;
events.map(async type => await this.addComponent(type));
}
view raw componentDidMount.js hosted with ❤ by GitHub

We render imported components as shown below.

render() {
const { components } = this.state;
if (components.length === 0) return <div>Loading...</div>;
const componentsElements = components.map(Component => (
<Component key={shortid.generate()} />
));
return <div className="App">{componentsElements}</div>;
}
view raw render.js hosted with ❤ by GitHub

Note that you need to have a unique key for each Component object instance, so I used shortid to generate unique key for each component.

The full source for App component is shown below.

import React, { Component } from "react";
import shortid from "shortid";
import "./App.css";
class App extends Component {
constructor(props) {
super(props);
this.state = {
components: []
};
}
addComponent = async type => {
console.log(`Loading ${type} component...`);
import(`./components/${type}.js`)
.then(component =>
this.setState({
components: this.state.components.concat(component.default)
})
)
.catch(error => {
console.error(`"${type}" not yet supported`);
});
};
async componentDidMount() {
const { events } = this.props;
events.map(async type => await this.addComponent(type));
}
render() {
const { components } = this.state;
if (components.length === 0) return <div>Loading...</div>;
const componentsElements = components.map(Component => (
<Component key={shortid.generate()} />
));
return <div className="App">{componentsElements}</div>;
}
}
export default App;
view raw App.js hosted with ❤ by GitHub

Now the switch statement within render() is gone and App doesn't need to change when a new type is added (refer to Open-Close Principle). When a new type is added, we just need to create a new component under components folder.

And also, scripts get loaded dynamically as shown in the video below.

Live Demo on Netlify

Case 2 - Handling Different Data Types

Let's take a look at more advanced scenario. Now each type is associated with data having different schema.

[
{
"type": "PushEvent",
"actor": {
},
"repo": {
},
"payload": {
"push_id": 1111,
"commits": [
{
"sha": "...",
"author": {},
"message": "...",
"distinct": true,
"url": "https://api.github.com/repos/..."
}
]
},
},
...
{
"type": "CreateEvent",
"actor": {
},
"repo": {
},
"payload": {
"ref": "master",
"ref_type": "branch",
"pusher_type": "user"
},
},
{
"type": "WatchEvent",
"actor": {
},
"repo": {
},
"payload": {
"action": "started"
},
},
]
view raw events.json hosted with ❤ by GitHub

It's from an actual response from a public GitHub API call.

There are 37 types of events, which one having slightly different response schema.

As it was the case in the Case 1, we could simply create an GitHub event handler component and let each one deal with different type of payload data.

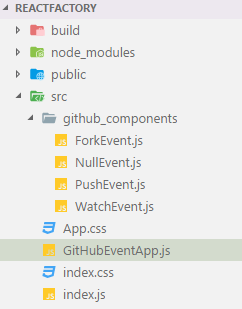

First, the code structure looks like this.

ReactFactory Tree Structure Code 2017 12 03 19 44 12

We pass the JSON response to GitHubEventApp like following.

fetch(`https://api.github.com/users/codingblocks/events/public`)
.then(response => response.json())
.then(events => {
console.log("index.js events", events);
ReactDOM.render(
<GitHubEventApp events={events} />,
document.getElementById("root")
);
});
view raw index.js hosted with ❤ by GitHub

Then we load components for each event in componentDidMount().

async componentDidMount() {
const { events } = this.props;
events.map(async event => await this.addComponent(event));
}
addComponent = async event => {
const { type } = event;
console.log(`Loading ${type} component...`);
import(`./github_components/${type}.js`)
.then(Component =>
this.setState({
components: this.state.components.concat(
<Component.default key={shortid.generate()} {...event} />
)
})
)
.catch(error => {
// Add an empty component for loading message
this.setState({
components: this.state.components.concat(
<NullComponent key={shortid.generate()} />
)
})
console.error(`"${type}" not yet supported`);
});
};
view raw componentDidMount.js hosted with ❤ by GitHub

Two things are worth mentioning here;

  1. I am instantiating Component within this.setState. It is because to make component sorting easier later in render()(I'd appreciate it if anyone let me know instantiating here instead of in render() would cause a performance issue or not).
  2. I am passing all event properties while instantiating a component (Each dynamically imported components can pick and choose props to use).

<Component.default key={shortid.generate()} {...event} />
view raw component.js hosted with ❤ by GitHub

Now let's render the result in descending order (higher the ID, the later the event was created).

render() {
const { components } = this.state;
const { events } = this.props;
if (components.length !== events.length) return <div>Loading...</div>;
components.sort((c1, c2) => c2.props.id - c1.props.id);
return <div className="App">{components}</div>;
}
view raw render.js hosted with ❤ by GitHub

Here is the glorious result 🎉🎉🎉 (Please pardon the appearance...)

firefox 2017 12 03 19 50 42

You can see that each event are rendered differently.

Component codes are listed here for the sake of completeness.

Live Demo on Netlify

ForkEvent.js

import React from "react";
const ForkEvent = ({ created_at: eventDate, repo, org, actor, payload }) => {
const { display_login: login, url: actorURL } = actor;
const { name: repoName, url: repoURL } = repo;
return (
<div>
<h3>Fork - (<small>{eventDate.toString()}</small>)</h3>
<p>
<a href={actorURL}>{login}</a> has forked{" "}
<a href={repoURL}>{repoName}</a>
</p>
</div>
);
};
export default ForkEvent;
view raw ForkEvent.js hosted with ❤ by GitHub

NullEvent.js

import React from "react";
// Null object pattern
const NullEvent = () => {
return (
<div></div>
);
};
export default NullEvent;
view raw NullEvent.js hosted with ❤ by GitHub

PushEvent.js

import React from "react";
import shortid from 'shortid';
const PushEvent = ({ created_at: eventDate, repo, org, actor, payload }) => {
const { display_login: login, url: actorURL } = actor;
const { commits } = payload;
const { name: repoName, url: repoURL } = repo;
return (
<div>
<h3>Push - (<small>{eventDate}</small>)</h3>
<div>
<a href={actorURL}>{login}</a> has pushed to{" "}
<a href={repoURL}>{repoName}</a>
<Commits commits={commits} />
</div>
</div>
);
};
const Commits = ({commits}) => {
return (
<ul>
{commits.map(commit => (
<li key={shortid.generate()}>{commit.author.name} has commited with message "{commit.message}"</li>
))}
</ul>
);
};
export default PushEvent;
view raw PushEvent.js hosted with ❤ by GitHub

WatchEvent.js

import React from "react";
const WatchEvent = ({ created_at: eventDate, repo, org, actor, payload }) => {
const { display_login: login, url: actorURL } = actor;
const { action } = payload;
const { name: repoName, url: repoURL } = repo;
return (
<div>
<h3>Watch - (<small>{eventDate.toString()}</small>)</h3>
<p>
<a href={actorURL}>{login}</a> has {action} following{" "}
<a href={repoURL}>{repoName}</a>
</p>
</div>
);
};
export default WatchEvent;
view raw WatchEvent.js hosted with ❤ by GitHub

Case 3 - Loading Components on Demand

The last case is when we want to display different views for the same input.

Suppose that given data, you can show it as a tabular form or as a graph.

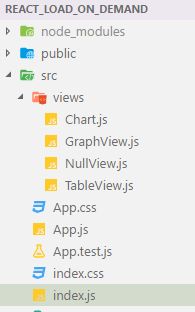

Code structure looks like this.

React Load On Demand Tree Structure Code 2017 12 03 20 01 21

Here is the shared data we want to display in tabular and/or graph representations.

// https://frappe.github.io/charts/
const data = {
labels: [
"12am-3am",
"3am-6am",
"6am-9am",
"9am-12pm",
"12pm-3pm",
"3pm-6pm",
"6pm-9pm",
"9pm-12am"
],
datasets: [
{
title: "Some Data",
values: [25, 40, 30, 35, 8, 52, 17, -4]
},
{
title: "Another Set",
values: [25, 50, -10, 15, 18, 32, 27, 14]
},
{
title: "Yet Another",
values: [15, 20, -3, -15, 58, 12, -17, 37]
}
]
};
view raw data.js hosted with ❤ by GitHub

Here is how the result looks before digging into the implementation (Please pardon my CSS skills again).

Live Demo on Netlify

App component initializes state with following properties.

this.state = {
loadedComponents: [],
components: []
};
view raw state.js hosted with ❤ by GitHub

  1. loadedComponents tracks what components have been added as not to load more than once.
  2. components holds view components (tabular or graph).

render() simply has 3 buttons and handles the click event.

render() {
const { components } = this.state;
return (
<div className="App">
<div className="buttons">
<div>
<button id="table" onClick={this.handleShowTableChange}>Show Table</button>
</div>
<div>
<button id="graph" onClick={this.handleShowGraphChange}>Show Graph</button>
</div>
<div>
<button id="null" onClick={this.handleNullGraphChange}>Not yet implemented...</button>
</div>
</div>
<div className="views">
{components.length === 0 ? (
<div>Nothing to display...</div>
) : (components)}
</div>
</div>
);
}
view raw render.js hosted with ❤ by GitHub

Each onClick events handlers adds a different view.

handleShowTableChange = async event => {
await this.addView("TableView");
};
handleShowGraphChange = async event => {
await this.addView("GraphView");
};
handleNullGraphChange = async event => {
await this.addView("NullView");
};
view raw handle.js hosted with ❤ by GitHub

addView imports a new view component by view name.

addView = async viewName => {
// Don't load more than once.
if (this.state.loadedComponents.includes(viewName)) return;
console.log(`Loading ${viewName} view...`);
import(`./views/${viewName}.js`)
.then(Component => {
this.setState({
loadedComponents: this.state.loadedComponents.concat(viewName),
components: this.state.components.concat(
<Component.default
key={shortid.generate()}
data={this.props.data}
/>
)
});
})
.catch(error => {
this.setState({
loadedComponents: this.state.loadedComponents.concat(viewName),
components: this.state.components.concat(
<NullView key={shortid.generate()} />
)
});
});
};
view raw addView.js hosted with ❤ by GitHub

Here are the views components.

TableView.js - Formats data using HTML table.

import React from "react";
import shortid from "shortid";
const TableView = ({ data }) => {
const { labels, datasets } = data;
const headers = datasets.map(set => (
<th key={shortid.generate()}>{set.title}</th>
));
const rows = labels.map((label, i) => {
return (
<tr key={shortid.generate()}>
<td key={shortid.generate()}>{label}</td>
{datasets.map(set => <td key={shortid.generate()}>{set.values[i]}</td>)}
</tr>
);
});
return (
<table>
<thead>
<tr>
<th key={shortid.generate()}>Labels</th>
{headers}
</tr>
</thead>
<tbody>{rows}</tbody>
</table>
);
};
export default TableView;
view raw TableView.js hosted with ❤ by GitHub

GraphView.js - Formats data graphically.

import React from "react";
import Chart from "./Chart";
import "frappe-charts/dist/frappe-charts.min.css";
// https://github.com/tobiaslins/frappe-charts-react-example
const GraphView = ({ data }) => <Chart title="Graph data" data={data} />;
export default GraphView;
view raw GraphView.js hosted with ❤ by GitHub

NullView.js - Does nothing.

import React from 'react';
const NullView = () => <div>This View is not yet implemented...</div>;
export default NullView;
view raw NullView.js hosted with ❤ by GitHub

Parting Words

I've discussed three cases.

  1. Loading React Components Dynamically - Demo - Source Code
  2. Handling Different Data Types - Demo - Source Code
  3. Loading Components on Demand - Demo - Source Code

I'd appreciate it if you can point out any optimizations or improvements I can make.
